Ng-grid is 100% angular grid which has no dependencies other than angular js. It has pagination, sorting, filtering and local data model binding/editing built in allowing for quick and easy integration with any Angular JS application.
In this post we will demonstrate few ng-grid features by using REST API over HTTP.
To get started we have add below references:
1. Angular JS
2. JQuery
3. Ng-Grid JS and CSS files
Steps to get data from REST API over HTTP and data binding to ng-grid

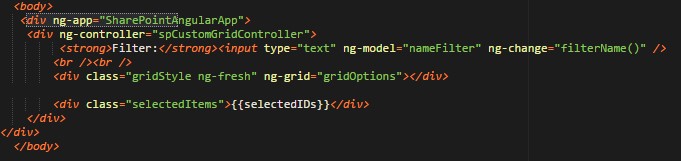

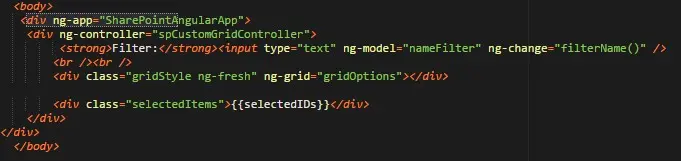

HTML
![](https://www.winwire.com/wp-content/uploads/2023/11/sr1.webp)
JS
1. Declare your app module and add ng-grid
![](https://www.winwire.com/wp-content/uploads/2023/11/sr2.webp)
2. Assign controller to your app module
![](https://www.winwire.com/wp-content/uploads/2023/11/sr3-1.webp)

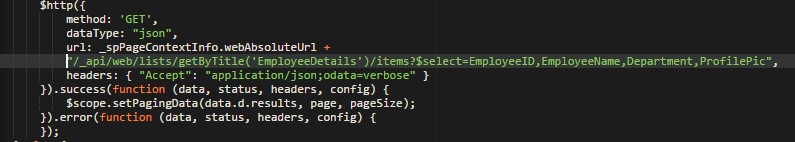

3. Script that returns JSON object from API using HTTP. Here am querying SharePoint list “EmployeeDetails” and retrieving values from 4 columns EmployeeID, EmployeeName, Department, ProfilePic.
![](https://www.winwire.com/wp-content/uploads/2023/11/sr4.webp)
4. Now initialize grid options under same controller as data. This binds the data to grid.
![](https://www.winwire.com/wp-content/uploads/2023/11/sr5.webp)

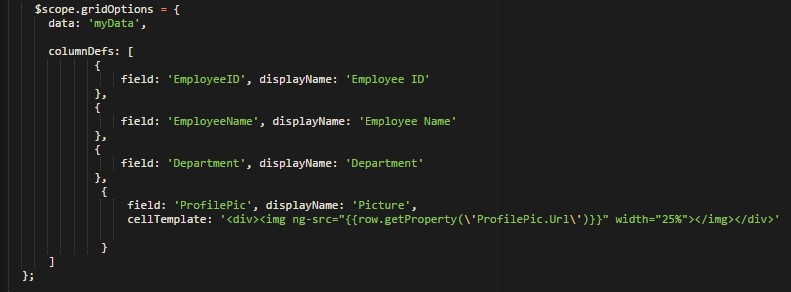

5. To bind only specific columns, we can define column definitions in ng-grid as below. It is common requirement for any Grid to have column names (display name) different from JSON name. Let’s bind only 4 columns which are retrieved from list.
![](https://www.winwire.com/wp-content/uploads/2023/11/sr6.webp)

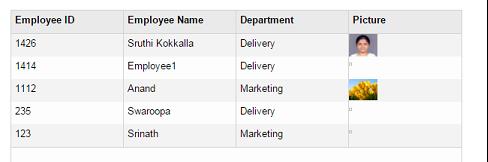

OUTPUT
![](https://www.winwire.com/wp-content/uploads/2023/11/sr7.webp)
Pagination
When pagination is enabled, data is displayed in pages that can be browsed using built in pagination selector. Lets build simple pagination.

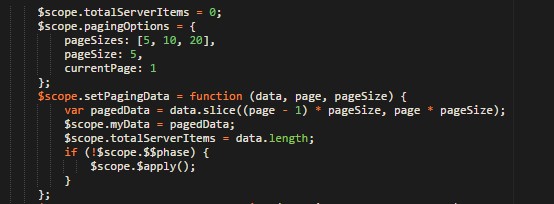

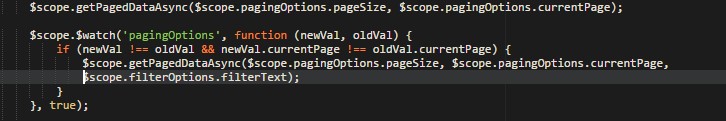

To define page size and index,
![](https://www.winwire.com/wp-content/uploads/2023/11/sr8.webp)
![](https://www.winwire.com/wp-content/uploads/2023/11/sr9.webp)

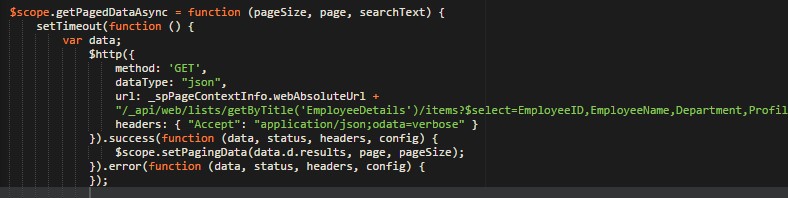

To bind data when page is changed, we have to make http call in PagedDataAsync method,
![](https://www.winwire.com/wp-content/uploads/2023/11/sr10.webp)

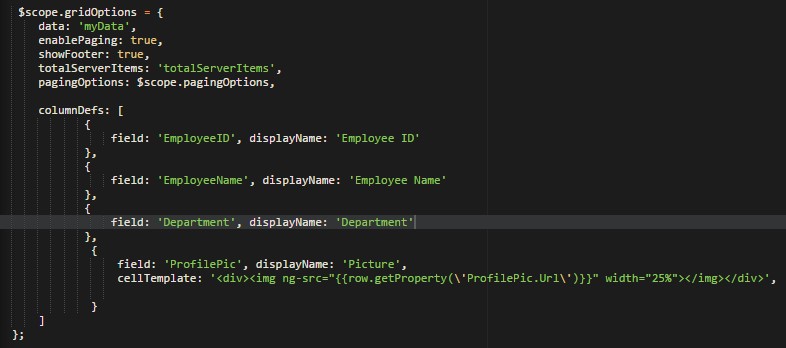

Finally while binding data, we have to enable pagination
![](https://www.winwire.com/wp-content/uploads/2023/11/sr11.webp)

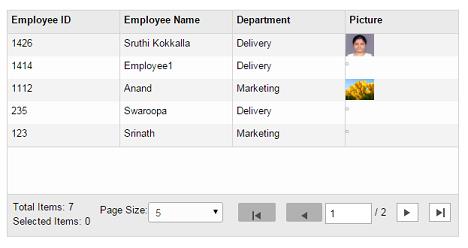

OUTPUT
![](https://www.winwire.com/wp-content/uploads/2023/11/sr12.webp)
Sorting
Sorting is ‘ON’ by default. You can set enableSorting flag in gridOptions to enable/disable it.

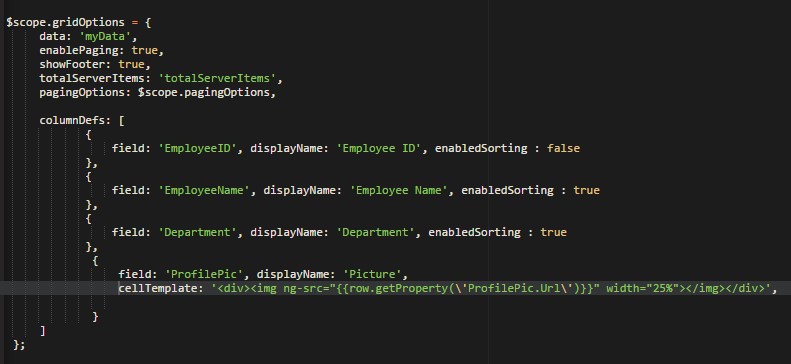

Sorting can also be disabled at column level by setting enableSorting : false in column definition
![](https://www.winwire.com/wp-content/uploads/2023/11/sr13.webp)

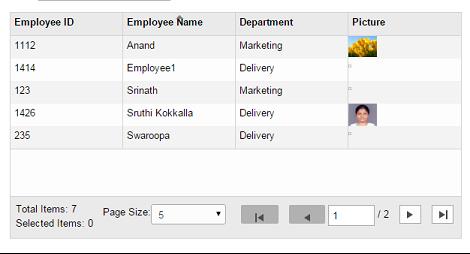

OUTPUT
Sorted by EmployeeName
![](https://www.winwire.com/wp-content/uploads/2023/11/sr14.webp)
